TILER is revolutionizing the way ebikes are charged by introducing a wireless, magnetic charging system that promises convenience, efficiency, and scalability. Modeled after the simplicity of wireless phone charging, TILER’s system uses a universal charging kickstand and a charging tile to power up ebikes without the need for cables. This innovation is particularly beneficial for both individual users and fleet operators, offering a seamless charging experience.

How TILER Works

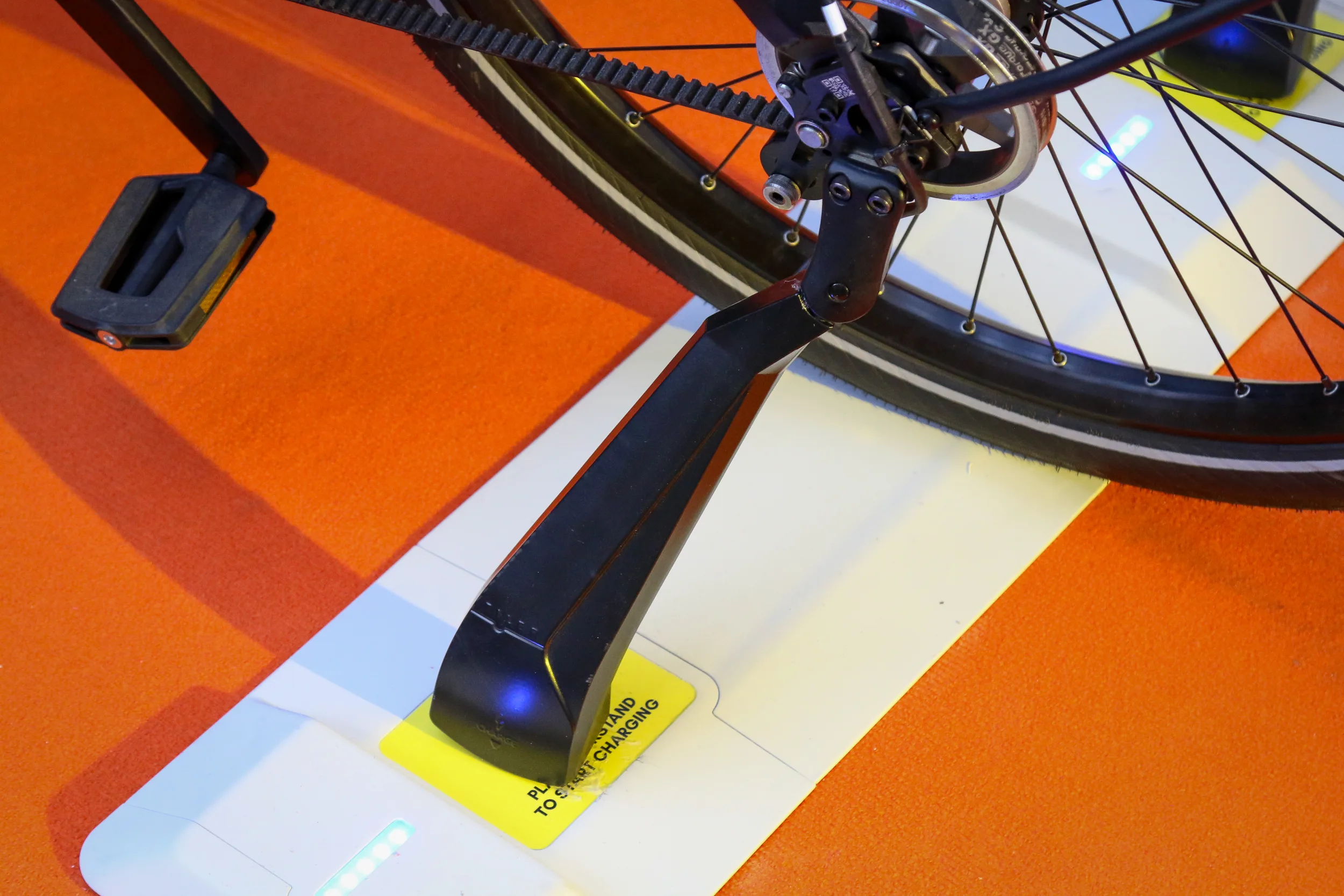

The system is straightforward: a kickstand is mounted on the ebike and hardwired to the motor. When the bike is parked on a TILER charging tile, the kickstand makes contact with the tile, enabling wireless magnetic charging. This eliminates the hassle of plugging in cables and ensures a clean, efficient charging process.

Compatibility and Versatility

TILER claims compatibility with approximately 75% of existing ebikes, including popular brands like GoBao, Bosch, Yamaha, Bafang, and Zehus. For customers unsure about compatibility, TILER offers assistance in selecting the correct cable for their specific bike. The technology has already been deployed in over 200 TILER Uno charging points across Western Europe, demonstrating its practicality and reliability.

TILER Compact: A User-Friendly Solution

The new TILER Compact is designed for both individual and fleet use. It doesn’t require installation and can simply be placed on the floor or mounted for added security. The Compact is 8mm thick, weighs 2 kg, and charges ebikes as quickly as a traditional cable charger. It also supports optimal battery health by limiting charging to 80% and monitoring battery temperature.

Key Features of TILER Compact:

  • Dimensions: 260 x 245 x 15 mm
  • Weight: 2 kg
  • Charging Time: 3.5 hours (tested on a 500Wh 36V battery)
  • Weatherproof Rating: IP67
  • Charging Power: 150 W

Options for Different Needs

TILER offers two versions of the Compact to cater to various use cases:

  1. Standard Rear-Mounted Kickstand Charger: Ideal for most ebikes.
  2. Center Stand Cargo CUBE: Designed specifically for e-cargo bikes, ensuring they’re always ready for use after parking.

TILER is also developing a slimmer version of the rear-mount kickstand with smaller electronics for improved aesthetics and functionality.

Applications for Individuals and Fleets

For individual users, the TILER Compact offers a convenient way to charge ebikes at home without the clutter of cables. For businesses or organizations managing fleets of ebikes, the system’s scalability is a game-changer. Up to 24 TILER Compact tiles can be interlocked to create a charging strip, streamlining the charging process for multiple bikes simultaneously.

Preorder and Pricing

TILER is currently accepting preorders for the Compact system, requiring a €29 down payment. The final production version is expected to retail at around €275 for the Tile and kickstand set.

Benefits of TILER

  1. Convenience: Wireless charging eliminates the need for cables and simplifies the charging process.
  2. Scalability: Perfect for both individual users and large fleets.
  3. Battery Health: Limits charging to 80% and monitors temperature to extend battery life.
  4. Weatherproof Design: Suitable for indoor and outdoor use.

The Future of Ebike Charging

TILER’s innovative approach to ebike charging aligns with the growing demand for sustainable and efficient transportation solutions. By addressing the challenges of cable clutter and fleet management, TILER is positioning itself as a leader in the ebike charging space. Whether for personal use or commercial applications, TILER offers a smart, scalable, and user-friendly solution that enhances the overall ebike experience.

For more information, visit tilercharg.com.
