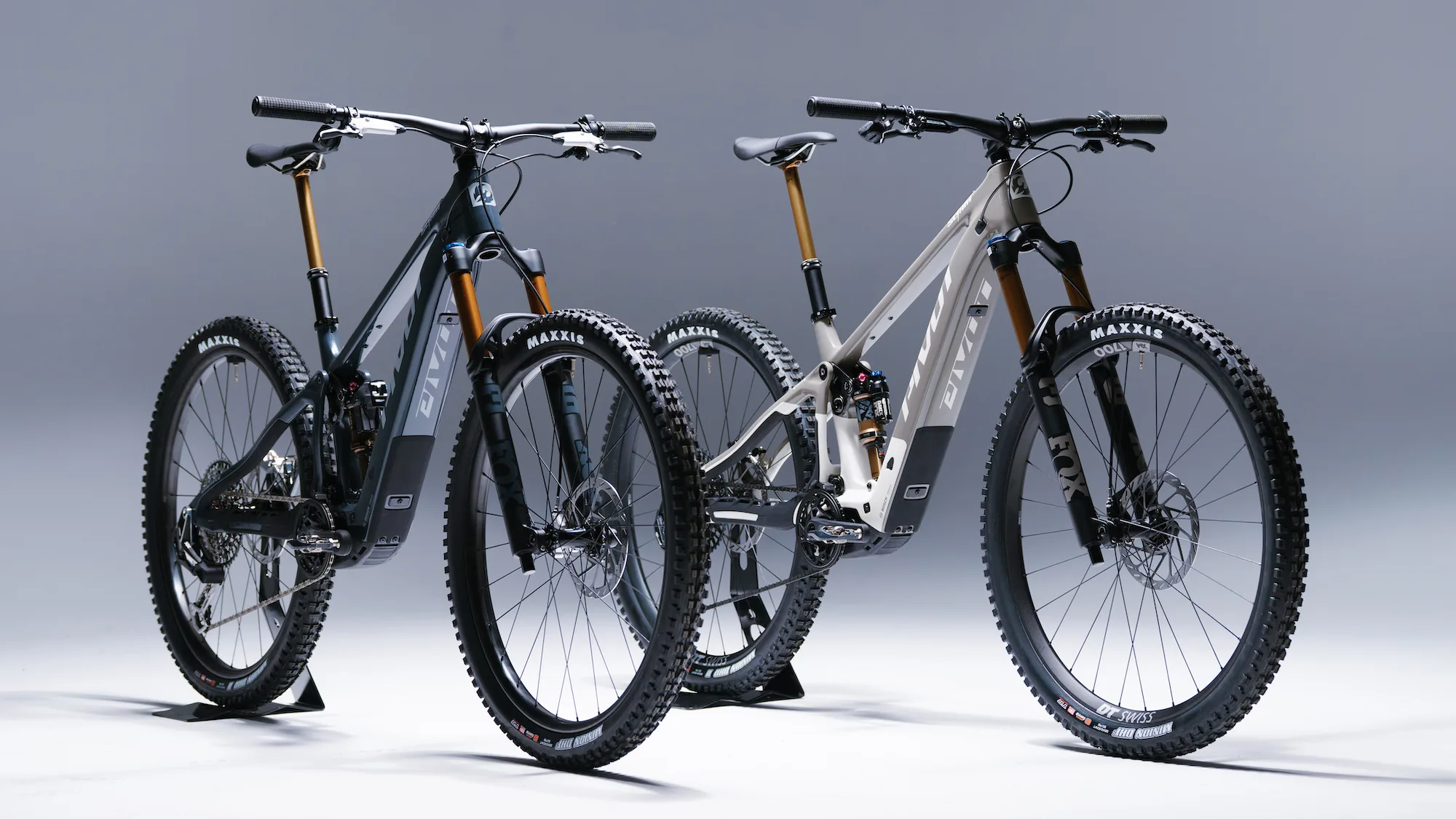

The Pivot Shuttle SL/AM is the latest addition to Pivot’s electric mountain bike lineup, designed to bridge the gap between the lightweight Shuttle SL and the full-power Shuttle AM models. This new bike combines the low weight of the Shuttle SL with the travel and geometry of the Shuttle AM, offering a versatile and capable eMTB for riders seeking a lighter bike with enhanced performance. The Shuttle SL/AM features a carbon fiber frame, 150mm of rear wheel travel, and a 160mm fork, making it a robust option for trail and all-mountain riding.
### Key Features and Design
The Shuttle SL/AM is built with a full carbon fiber frame, ensuring a lightweight yet durable construction. It shares the same DW4 rear suspension platform as the Shuttle AM, providing 150mm of rear travel paired with a 160mm fork. The bike’s geometry is nearly identical to the Shuttle AM, with a 64.5° head tube angle (in the high setting) and a 76.9° effective seat tube angle. The chainstays are 444mm across all sizes, and the bike is available in five sizes, including an XS model with a mixed-wheel (mullet) setup for riders between 4’11” and 6’7”.
The bike’s geometry is adjustable via a flip chip, which allows riders to tweak the head and seat tube angles by 0.4° and adjust the bottom bracket height by 5mm. This feature also accommodates mixed-wheel setups, providing additional versatility. The frame includes internal cable routing, integrated chain and downtube protection, and mounts for a full-size water bottle or range extender inside the front triangle.
### Motor and Power System
The Shuttle SL/AM is powered by the Bosch Performance Line SX motor, which delivers up to 600W of peak power and 55Nm of torque. While it doesn’t match the torque of full-power motors like the Bosch CX or DJI Avinox, the SX motor provides a significant boost to pedaling effort, making it ideal for riders who prioritize a lighter bike over full-throttle power. The motor is paired with a 400Wh internal battery, which is housed in the downtube and requires motor removal for access. For extended rides, the bike is compatible with the Bosch PowerMore 250Wh range extender, increasing the total battery capacity to 650Wh.
### Build Options and Pricing
The Shuttle SL/AM is available in three build options, all featuring the same carbon frame, Bosch SX motor, and 400Wh battery. The entry-level Ride Eagle 70/90 build starts at $8,000, while the top-tier Team XX Eagle Transmission build costs $12,300. The Pro XO Eagle Transmission build is priced at $10,400. All builds come with Fox suspension, with the Pro and Team models featuring the Fox Factory Float X shock. The Ride build includes the Fox Performance Float shock. The bike is available in two color options: Brownstone and Gloss Grey.
### Conclusion
The Pivot Shuttle SL/AM is a well-rounded eMTB that combines the lightweight design of the Shuttle SL with the travel and geometry of the Shuttle AM. Its carbon fiber frame, adjustable geometry, and Bosch SX motor make it a versatile option for riders seeking a lighter eMTB with enhanced performance. While it may not offer the full power of some competitors, the Shuttle SL/AM is an excellent choice for those who prioritize weight savings and trail capability. With a starting price of $8,000, it’s a premium option for riders looking to invest in a high-performance electric mountain bike.
